Pro Dual Band Signal Booster Voice & 3G– 1000 sq.m.

(Vodafone, 2Degrees & Warehouse Mobile)

Bestseller Pro Dual Band Signal Booster Voice & 3G– 1000 sq.m.
  • Application:

    2 Band
  • Coverage:

    Up to 1000 sqm
  • Ideal For:

  • Provider:

  • Frequency:

    900/2100 MHz
  • Data:

    3G Data & Voice
Free Shipping In NZ Delivery time: 5-7 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Instant Technical Assistance
  • 3-Year Warranty Included

$ 1200

Units Sold: 560

Free Shipping

Overview

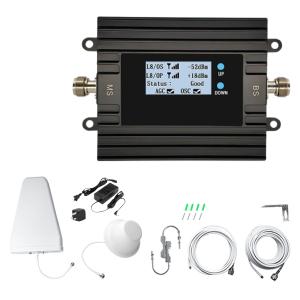

Kit includes:

  • 1x repeater
  • 2x indoor antenna
  • 1x outdoor LPDA antenna
  • 1x power adapter
  • 1x 15 metres cable
  • 1x 5 metres cable
  • 1x 10 metres cable
  • 2 way splitter
If our standard package cable length is not enough to cover your area you have an upgrade option.
Upgrade your booster kit with our internal antenna for optimal performance in larger spaces.
Price Match Guarantee

Experiencing a downright awful signal at your home, or place of business can have a devastating effect on your productivity. What we offer you is a Powerful solution to skyrocket your connection to full 5 bars, even when your outside signal is as poor as 1 bar - this 2Degrees & Vodafone booster. We will certainly deliver this device for free and leave you with a full kit to set it up. The installation is hassle-free and the set up will be ready in no time! If you face any issues whatsoever with the device, you can count on our help and consult via 24/7 support line.  This powerful booster comes with a 2-year warranty, and if for any reason it wasn’t a perfect fit for you, you can return it within 30 days for a full refund.

  • Technical Sheet
  • Coverage
    Up to 1000 sqm
  • Use
    Large Hotel
    Overlarge Home
    Other large areas
  • Operator
    Vodafone (Voice & 3G Data)
    2Degrees (Voice & 3G Data)
    Warehouse Mobile (Voice & 3G Data)
  • Frequency
    900/2100 MHz
  • Number of simultaneous users
    150
  • Up-link
    890 ~ 915 MHz
    1920 ~ 1980 MHz
  • Down-link
    935~ 960 MHz
    2110 ~ 2170 MHz
  • Kit
    Repeater and all accessories
  • Voltage
    AC:90~265V, 50/ 60Hz;DC:5V/ 2A
  • Dimensions
    200 x 120 x 38 mm.
  • Weight
    1.4 kg
  • Max Gain
    75 dB
  • output
    Up link 24dBm Downlink: 27dBm
  • MGC ( Step Attenuation )
    ≥ 31dB / 1dB step
  • Gain Flatness
    GSM & CDMA Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
    WCDMA ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
  • Noise Figure
    ≤ 5dB
  • Group Delay
    ≤2dB
  • Function
    a) Power supply LED denote b) Export power LED denote
  • Automatic Level Control
    50Ω/N connector
  • VSWR
    ≤2dB
  • Frequency Stability
    ≤0.01 ppm
  • Spurious Emission & Output inter-modulation
    GSM Meet ETSI TS 151 026 V 6.1.0
    WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    CDMA Meet IS95 & CDMA2000
  • WCDMA System
    Spurious Emission Mask Meet 3GPP TS 25.143 ( V 6.2.0 )
    Modulation Accuracy ≤ 12.5%
    Peak Code Domain Error ≤ -35dB@Spreading Factor 256
  • CDMA System
    Rho ρ > 0.980
    ACPR Meet IS95 & CDMA2000
  • I /O Port
    N-Female
  • Impedance
    50 ohm
  • Operating Temperature
    -25ºC~+55ºC
  • LED
    • Band 1 UL/P Band 2 UL/P Band 3 UL/P
      There are 3 UL/P LEDs to indicate respective frequency band’s up link working status or system warning state. Each UL/P LED takes the same indication meaning. The LED(s) is Dark when there are no phone calls in the coverage area or cell phone does not contact BTS. The LED(s) flashes in Red when there is a phone call in the coverage area, or cell phone contacts BTS periodically. Any of the 3 LEDs lighting in constant or solid Red indicates System Warning state. The repeater works in abnormal state or is self-oscillating.
    • Band 1 DL/P Band 2 DL/P Band 3 DL/P
      There are 3 DL/P LEDs to indicate respective frequency band’s down link working status. Each DL/P LED takes the same indication meaning. The LED(s) is Dark when corresponding frequency band(s) amplified signal output power does not reach lighting threshold. Usually output power ≤ 10dBm. This means the corresponding frequency band(s) works at small power output state. The LED(s) lighting in Green means that the corresponding frequency band(s) amplified signal output power reaches lighting threshold. The corresponding frequency band(s) works in good amplification state. The LED(s) lighting in Red or Orange means that the corresponding frequency band(s) amplified signal output power reaches maximum. The corresponding frequency band(s) works in best amplification state.

FAQ

How it works

Reviews:

4.8

28 customer reviews

WRITE A REVIEW

ASK A QUESTION







Reviews (28) Questions (0)
R
Rasheed Corwin Verified Customer2025/04/17
We live in rural Tasman area. Previously, we'd get one bar of 3G on the windowsill not to mention the countless dropped calls. With the product installed we now get 3-4 bars in all rooms, 4G at times, and no more dropped calls. I'd recommend it despite its high price. I am happy I bought it early enough.
    H
    Hobart Verified Customer2025/04/11
    I did not know what to expect because I hadn’t used a mobile booster before. However, all I can say is that I’m impressed. MANT THANKS to the customer service team for being responsive and helpful.
      S
      Sherman Schiller Verified Customer2025/04/01
      Our home is in New Plymouth, a picturesque town 80 kilometers away from the nearest urban center. Our house sits 12 kilometers from the closest cell tower, and, regrettably, we've struggled with unreliable connectivity. We were initially skeptical about this solution, but it has pleasantly surprised us. I wholeheartedly recommend it!
        M
        Merle Hintz Verified Customer2025/03/24
        The installation was a little tougher than I thought it would be. However, once the parameters were met we went from 0-1bar signal to 4 bars
          F
          Ferne Rempel Verified Customer2025/03/17
          In general, this device does fulfill its intended purpose. I've witnessed a significant improvement in my signal strength, going from a mere one bar to a solid four bars indoors, which is certainly commendable. However, there are a couple of aspects that could be significantly improved: The use of N connectors presents a notable inconvenience. When you need to drill a hole in your house's exterior to accommodate the cable for the outdoor antenna, the sheer size of these N connectors becomes a challenge. This results in having to create a substantial 1-inch hole for a cable that's only about 1/4-inch thick. This not only seems excessive but also complicates tasks like routing cables through walls. Switching to SMA connectors on the amplifier end could have resolved this issue neatly. Unfortunately, the user manual falls short in terms of clarity and utility. It lacks guidance on how to optimize the unit's performance and fails to provide valuable information on various aspects. Consequently, users are left hoping that the device will function optimally upon installation without the need for any adjustments. Overall, the unit does deliver on its promise of improving signal strength. However, there is room for improvement in terms of execution, particularly regarding connector design and the comprehensiveness of the user manual.
