Ultra 2 Mobile Booster LTE - 600 sq.m.

(All NZ Operators)

  • Application:

    2 Band
  • Coverage:

    up to 600 sqm
  • Ideal For:

  • Provider:

  • Frequency:

    700/850 MHz
  • Data:

    4G Data & Voice
Free Shipping In NZ Delivery time: 5-7 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Instant Technical Assistance
  • 3-Year Warranty Included

$ 1000

Units Sold: 1921

Free Shipping

Overview

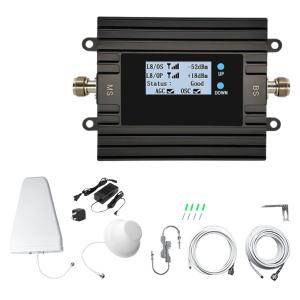

Kit includes:

  • 1x repeater
  • 1x outdoor LPDA antenna
  • 2x indoor antenna
  • 1x power adapter
  • 1x 15 metres cable
  • 2x 5 metres cable
If our standard package cable lenght is not enought to cover your area you have an upgrade option.
Upgrade your booster kit with our internal antenna for optimal performance in larger spaces.
Price Match Guarantee

If you are facing challenges with maintaining a stable connection across a medium-sized  area, we are here to help. This repeater will boost your signal to full 5 bars in no time!  The Ultra 2 model comes with everything you will need to install it, plus simple step-by-step instructions. The setup will be ready in no time! However, if you have any questions along the way, call us via 24/7 support line, and we will be happy to help. We value your time and want to give you the product that will serve you best. So we are glad to offer you a 2-year warranty, in addition to a 30-day money-back guarantee and free delivery.

  • Technical Sheet
  • Coverage
    up to 600 sqm
  • Use
    Big Boat
    Medium Home
    Small Office
    Other Middle Areas
  • Operator
    Spark (2G & 4G)
    Skinny (2G & 4G)
  • Frequency
    700/850 MHz
  • Number of simultaneous users
    100
  • Up-link
    832-862 MHz
    890-915 MHz

  • Down-link
    791-821 MHz
    935-960 MHz
  • Voltage
    AC/220V±10% 45~55Hz
  • Dimensions
    225*140*32 mm
  • Weight
    1.2 kg
  • Power
    • Red
      Normal
    • Off
      DC power problem
  • DL (Downlink)
    • White
      No signal received Solution: Adjust the outdoor installation to get sound signal
    • Green
      Signal received ok but not perfect
    • Red
      Full signal received
  • UP (Uplink)
    • Flicker
      When there is a call it is normal
    • Green
      Always green means self-excited Solution: Turn off the booster, adjust the indoor and outdoor antenna again and try to expand the distance or create some barriers between them.
  • ALA (Alarm system)
    • Red
      The installation is not correct. For example, the outdoor antenna been stolen the cable is not connected properly There are strong input signals or severe self-oscillation, measures must be Take n(please note that our boosters have auto shut off function so the red colour status can only maintain for 5 seconds).
    • Off
      Booster breaks down, or severe self-oscillation leads to auto mute Re-plug in and check if alarm LED turns Red.
  • output
    Up link :15dBm Downlink: 17dBm
  • Port VSWR
    ≤1.8DB
  • Noise figure
    ≤6dB
  • Ambient temperature
    -15°C~55°C
  • Size/weight
    225*140*32 (mm)/1.2kg
  • Function
    a) Power supply LED denote
    b) Export power LED denote
  • I/O impedance
    50Ω/N connector
  • Transmission delay
    ≤0.5μs
  • Power supply
    AC/220V±10% 45~55Hz
  • Coverage area
    Up to 300 sqm
